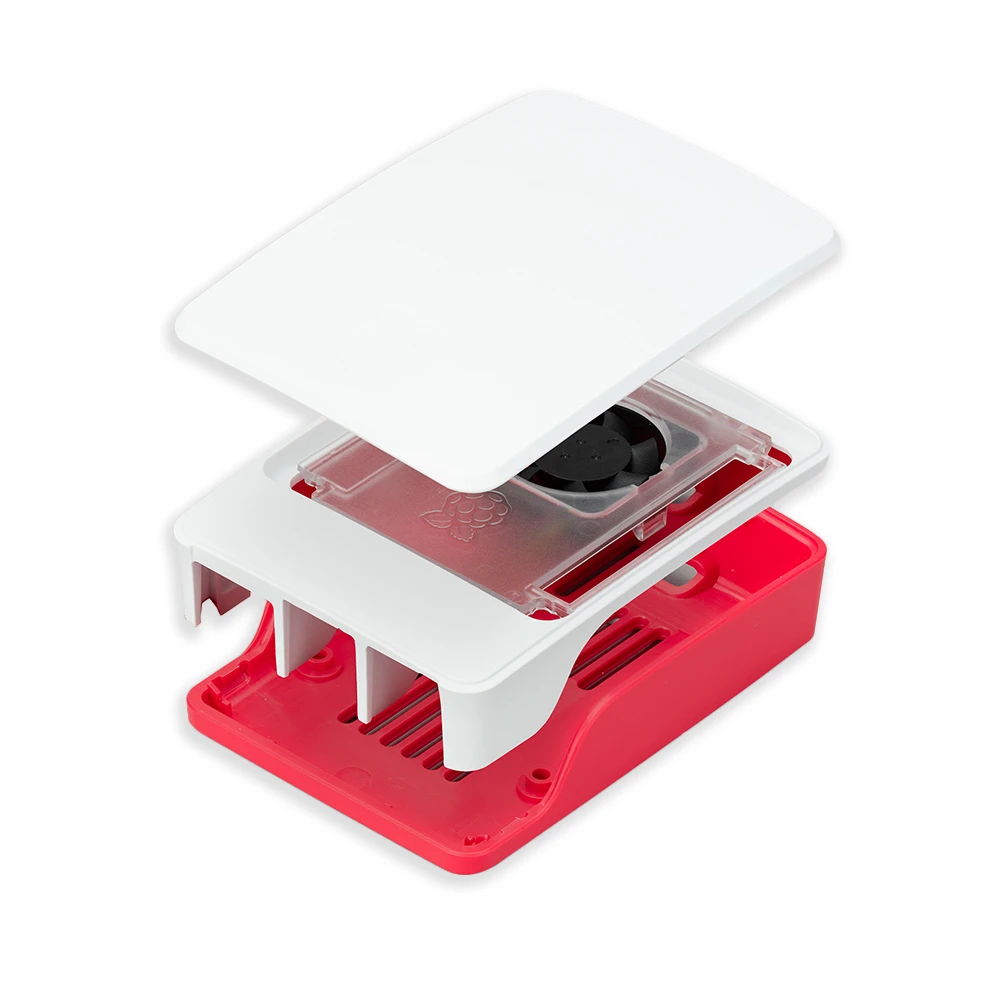

Raspberry Pi 5 Case – Red/White

The Raspberry Pi 5 case is a refinement of the Raspberry Pi 4 case. With improved thermal features to support the higher peak power consumption of Raspberry Pi 5, it integrates a variable-speed fan. The fan is powered and controlled from a dedicated connector on the Raspberry Pi 5 PCB.

The case is available in the signature Raspberry Pi red/white color scheme. Black and Grey to come shortly.

• Axial fan spec:
  • 30mm × 30mm × 7.5mm dimensions
  • Four wires: power, ground, PWM, and tachometer
  • The fan is quiet with an FDB bearing for low noise
    and increased longevity (50k hours)
  • Max fan speed is 8000RPM
  • Max airflow is approx 2.79CFM
• Case spec:
  • A four-part ABS plastic enclosure that easily clips together
  • An accessories envelope included in the box contains a
    dedicated Pi 5 heatsink to stick on the CPU, plus four
    silicone feet on a strip
