MIKROE Proximity 2 Click

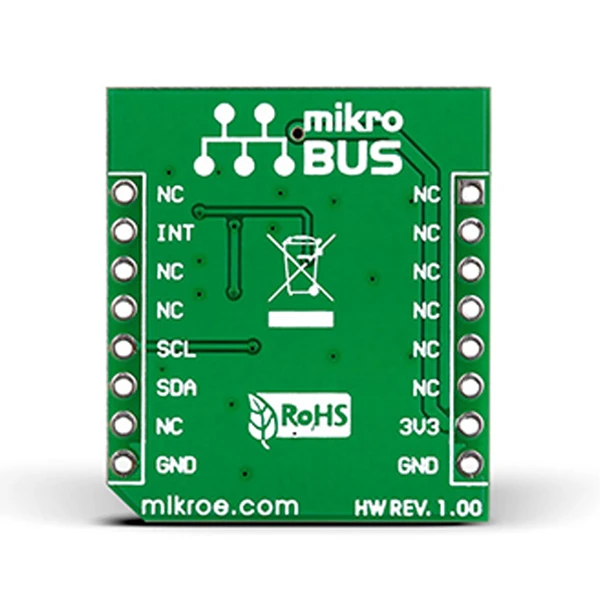

Proximity 2 Click features MAX44000, an IC that integrates an ambient light as well as a proximity sensor. The chip consists of an array of photodiodes that convert light into current, which the internal circuitry then converts into a digital value. The light sensor has a dynamic range of 0.03 to 65.535 lux. The IR proximity detector is matched with an integrated IR LED driver (for the onboard high power infrared LED). Proximity 2 Click communicates with the target board microcontroller through mikroBUS I2C (SCL, SDA), and INT lines. It’s designed to use a 3.3V power supply only.

• Interface: GPIO, I²C
• Compatibility: mikroBUS™
• Dimensions: 28.6 x 25.4mm
• Input Voltage: 3.3V
